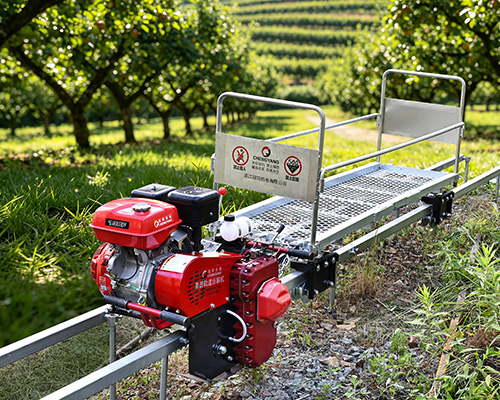

7ZSGS-500A

Technical Specifications	Unit	Model
Technical Specifications	Unit	7ZSGS-500A
Driving Form	/	Self-Propelled
Structural Form	/	Double Rail, Bidirection
Matching Power Type	/	Gasoline Engine
Engine Capacity	mL	391
Fuel Tank Capacity	L	6
Oil Level	L	1
The amount of oil injected into the gearbox	L	2.5
Rated power of the supporting power supply	kW	6.6(9.0)
Rated rotational speed of the supporting power unit	r/min	3600
Overall Machine Weight	kg	240
Rated Loading Capacity	kg	500
Maximum Slope Gradient	(°)	45
Dimensions of the Trolley (length×width×height)	mm	1950×600×700
Rail Form	/	Toothed Bar Type
Rail Material Model	/	Q235R2.5-3000
Rail Wall Thickness	mm	Optional:2.5/2.75/3.0
Rail Unit Length	m	3
Operating Speed	m/s	0.8
Size of the Package of the Drive Unit (length×width×height)	cm	89×70×84
Volume of the Package of the Drive Unit	m³	0.524
Weight of the Package of the Drive Unit	kg	18
